RFA2-600 – Broadband Amplifer – Ture-DC … 600 MHz – Output Amplitude 22 Vpp
698.51 €
Description

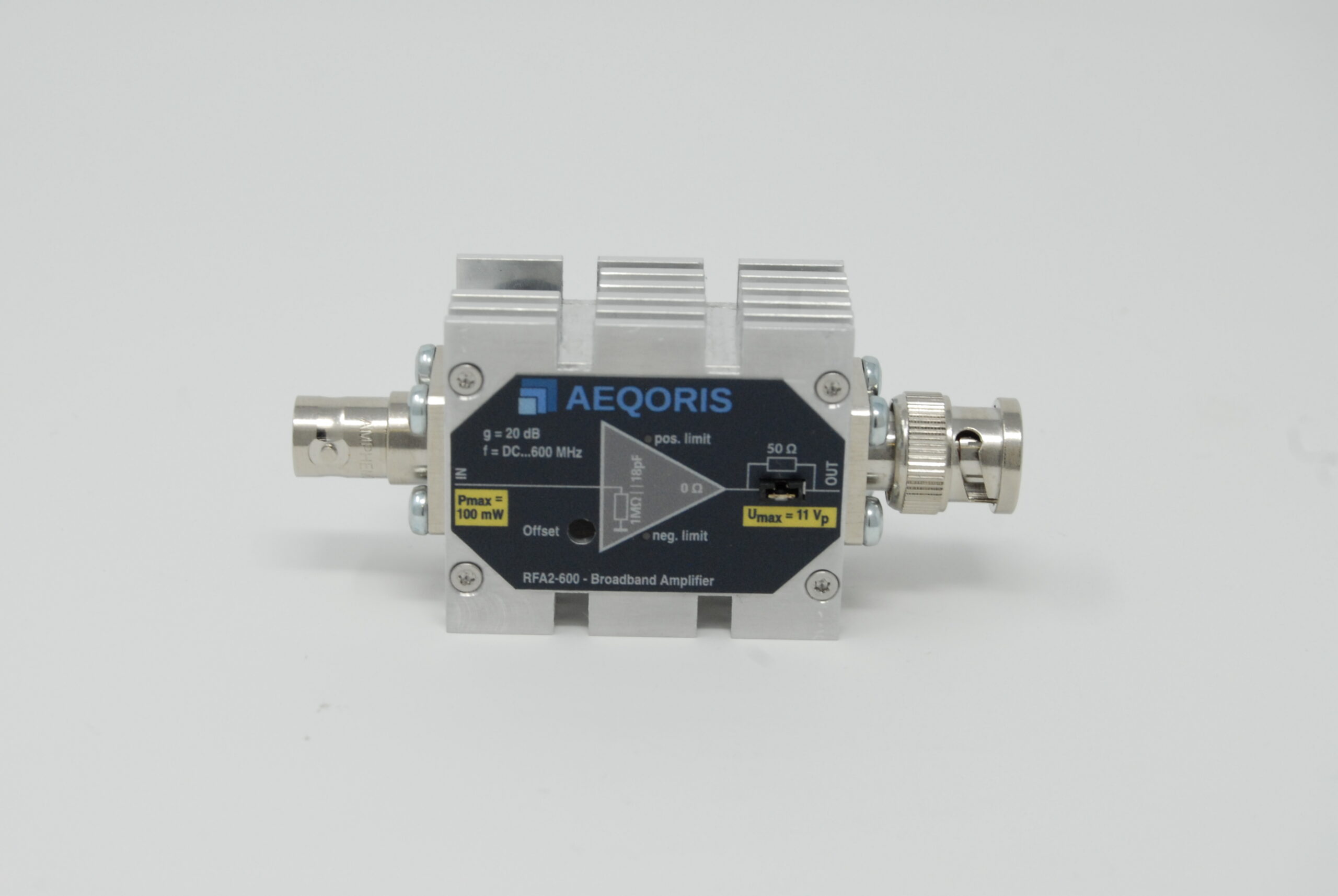

The True-DC broadband amplifier RFA 600 amplifies signals in a wide frequency range with very low ripple and an amplitude of 22 Vpp, which is outstanding for this device class. The device has DC coupling.
Application
- Baseband signal processing ATE
- Automatic test environment
- Video signal processing
- IoT sensors
- Non-destructive material test
Technology
- Discrete differential amplifier
- Adjustable DC offset
- Passive cooling
Interfaces
- Input BNC 50 Ohm
- Output BNC 50 Ohm
- power supply 5.1 mm DC power jack
Specification
| Parameter | Min. | Typ. | Max. | Einheit |
|---|---|---|---|---|
| Frequency response (±0,1 dB) | 0 – 100 | MHz | ||
| Frequency response (+0 / -3 dB) | 0 – 600 | 0 – 650 | MHz | |
| Output amplitude | 22 | Vpp | ||
| Input impedance | 50 | Ω | ||
| Output impedance | 50 | Ω |
Documents
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 600 × 300 × 150 mm |
